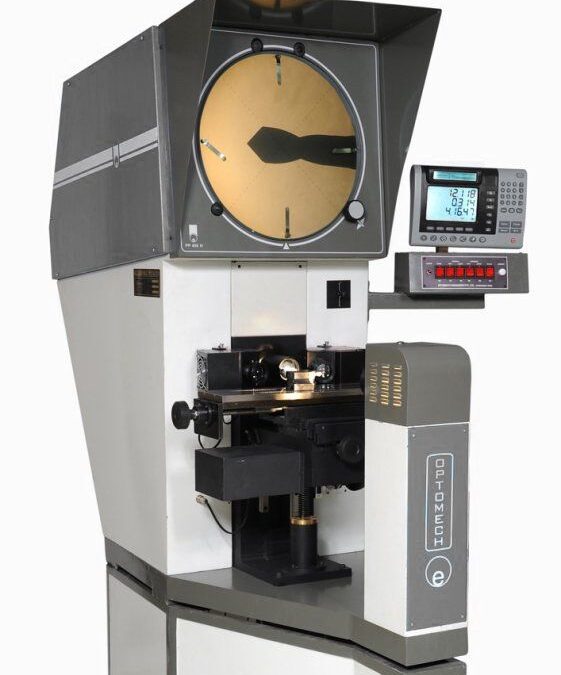

Optical Profile Projector

The Optomech Optical Profile Projector is a high-performance optical measurement tool designed for evaluating non-contact dimensions. This instrument plays an essential role in quality control across manufacturing processes, providing highly accurate measurements for profile, contour, and surface analysis. By using sophisticated optics and advanced digital imaging technology, it delivers reliable results for a variety of applications.

Key Features of the Optomech Optical Profile Projector

  1. High-Resolution Optical Imaging
    Thanks to its telecentric lens and precise optical components, the Optomech Optical Profile Projector delivers deformation-free images. As a result, users can achieve micron-level accuracy in profile measurements.

  2. Digital Readout & DRO System
    The integrated digital readout (DRO) system displays real-time measurement values, which reduces operator errors significantly. Moreover, it supports multiple coordination systems through a digital interface, making the measurement process both simple and accurate.

  3. Vertical and Horizontal Projection Models
    Optomech offers both vertical and horizontal profile projectors, allowing flexibility for various component sizes.

    • Vertical models are ideal for measuring thin, flat components.
    • In contrast, horizontal models are tailored for larger, heavy, or cylindrical components.

  4. Large Screen with High Magnification Lenses
    The high-contrast projection screen provides a clear, detailed image of the measured part, making inspection easy. Additionally, the availability of different magnification lenses offers flexibility to accommodate a wide range of measurement needs.

  5. Edge Detection for Accurate Measurement
    With modern edge detection technology, the projector can automatically identify and measure edges. This feature minimizes the need for human intervention, ensuring precise and reliable measurements every time.

  6. Manual, DRO, or Software-Based Versions
    Users can select from manual, DRO, or software-based models of the Optomech Optical Profile Projector, depending on their specific requirements. These options offer the flexibility to match diverse automation and accuracy needs.

  7. Robust Construction & Long-Term Reliability
    The projector’s robust frame and vibration-free construction ensure consistent and reliable operation. Additionally, the use of precise mechanical parts and high-quality optics guarantees long-term durability and continued accuracy.

Technical Advantages of the Optomech Optical Profile Projector

  • Micron-level accuracy for precise dimensional measurement.
  • High-resolution projection screen ensures clear visualization.
  • Multiple magnification lenses provide flexible inspection options.
  • Digital Readout (DRO) system enables real-time measurement feedback.
  • Automatic edge detection reduces dependency on manual intervention.
  • Vertical and horizontal models offer versatility for a variety of applications.
  • Robust, maintenance-free design ensures long-lasting performance.

Applications in Dimensional Metrology

The Optomech Optical Profile Projector is widely used in tool rooms, quality control labs, and manufacturing facilities for precise profile measurement, contour analysis, and overall inspection. This tool plays a crucial role in ensuring that manufacturers can achieve tight tolerances and maintain consistent part quality.
